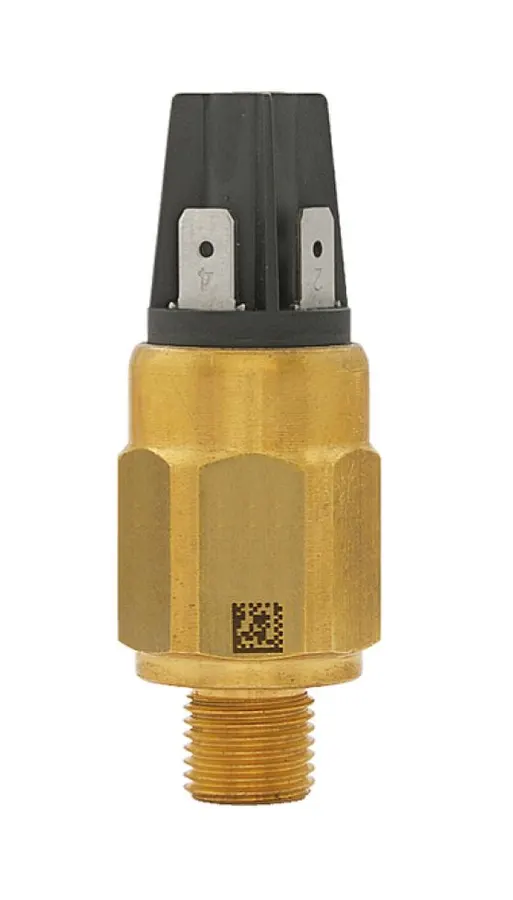

Séries VS – PS – MS Pressostats OEM, contact inverseur, de -0,9 à +300 bar

CITEC · 809-04

Series VS – PS – MS — OEM pressure switches, changeover contact, -0.9 to +300 bar

OEM: pneumatic, hydraulic

Request a quote Datasheet

Category: Industrial sensors · Pressure switches

Specifications by model

CharacteristicValue
Pressure range-0,9 bar à 300 bar
Max. static pressureModel-dependent (see references section)
Reproducibility (at 25 °C)Model-dependent (see references section)
DesignVS-MS: HNBR diaphragm · PS: piston with HNBR seal
Electrical contact1 inverseur SPDT -- 6 A / 250 V AC, 2 A / 24 V DC
Contact settingBy screw on body (factory setting on request)
Hysteresis (at 25 °C)VS : 100 mbar, MS - PS : ~15 % valeur de consigne
Fluid temperature-25...+140 °C
Pressure connectionG ¼" male
Electrical connectionEmbase à cosses Faston 6,3 x 0,8 et connecteur PG · 7
BodyStandard — VS-MS: brass, PS: galvanised steel
Ingress protection ratingIP 65 (avec fiche PG 7 fournie)
Switching frequency60 /mn (P) et 120/mn (M)
Mechanical life10⁶ cycles
Mass100 g (avec connecteur)

Full description

• OEM: pneumatic, hydraulic • Pressure range: -0.9 to 300 bar • Changeover contact • Adjustable set point • Fixed hysteresis • Brass or steel body, G ¼" connection Hydraulics and pneumatics, shipbuilding, engine construction, rail vehicles, machine tools, power plants and hydraulic circuits Inside a hollow metal body, a spring/piston or spring/diaphragm device operates an electrical contact. Rising or falling pressure moves a plate that makes the contact at the set value or position. The set point is adjusted with the screw under the terminal cover.
