Série VSM – PSM – PSP Pressostats industriels, contact inverseur, hystérésis réglables, de -0,9 à +300 bar

CITEC · 809-05

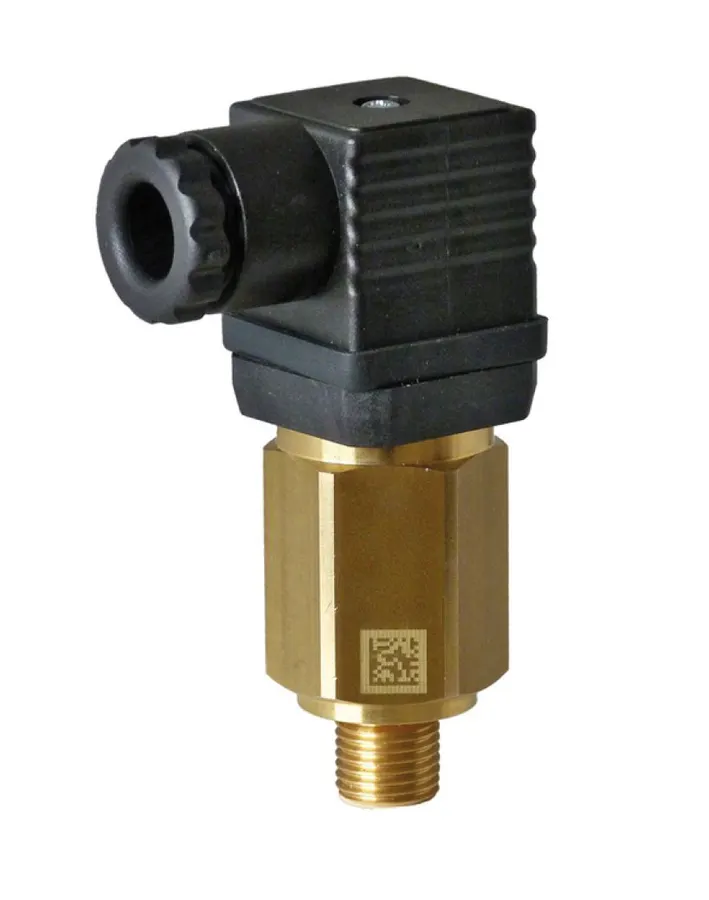

Series VSM – PSM – PSP — industrial pressure switches, adjustable hysteresis, -0.9 to +300 bar

Pressure range: -0.9 to 300 bar

Request a quote Datasheet

Category: Industrial sensors · Pressure switches

Specifications by model

CharacteristicValue
Pressure range-0,9 bar à 300 bar
Max. static pressureModel-dependent (see references section)
DesignVSM-PSM: NBR diaphragm · PSP: steel piston, NBR seal
Electrical contact1 inverseur SPDT -- 6 A / 240 V AC, 5 A / 24 V DC
HysteresisRéglable de 10 à 30 % de la valeur de consigne
Contact settingBy screw on body (factory setting on request)
Fluid temperature-5...+90 °C
Pressure connectionG ¼" male
Electrical connectionEmbase DIN 43650, connecteur fourni
BodyVSM-PSM: brass · PSP: galvanised steel
Ingress protection ratingIP 65
Switching frequency (at 25 °C)120 /min (membrane) · 60 /min (piston)
Mechanical life10⁶ cycles
Mass100 g

Full description

• Pressure range: -0.9 to 300 bar • Changeover contact • Adjustable set point and hysteresis • Process connection: G ¼" Hydraulics and pneumatics, shipbuilding, engine construction, rail vehicles, machine tools, power plants and hydraulic circuits Inside a hollow metal body, a spring/piston or spring/diaphragm device operates an electrical contact. Rising or falling pressure moves a plate that makes the contact at the set value or position. The set point is adjusted with the screw under the DIN connector.
