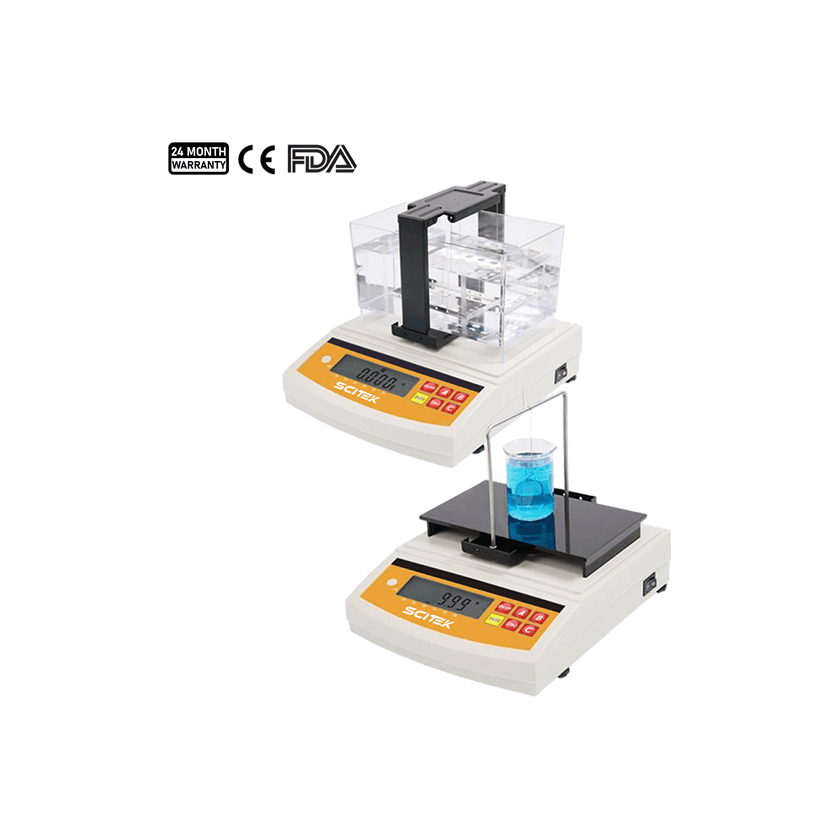

Densimètre multifonction haute précision DME-120PSL / DME-300MSL

DME-120PSL · DME-300MSL

High Precision Multifunctional Solid and Liquid Densimeter DME-120PSL / DME-300MSL

Multifunction density

Request a quote

Category: Measuring instruments · Hydrometers & densimeters

Specifications by model

CharacteristicDME-120PSLDME-300MSL
Capacity120 g300 g
DisplayLCDLCD
Density resolution0.0001 g/cm³0.001 g/cm³
Weight range0.001—120 g0.005—300 g
Density range0.0001—99.9999 g/cm³0.001—99.999 g/cm³
Solid modeMeasured solid itemsDensity of all forms of solid, including metal, rubber, plastic, film, floating body, powder, foam, viscous body, structure, tubing, wood, sponge, glass, pitch, cement, soil, gem, paper, concrete, coal, rock, ceramic.etc. (cover the products of hygroscopicity, non-absorbency, high-viscosity)
Measuring modeArchimedes principle
Measurable parametersDensity of general non-absorbent solids
Measuring timeAbout 5 seconds
Memory methodMemory stored in one step
Specific gravity measurement frameCompleted injection forming professional specific gravity measurement frame (size: length 13.5 mm×wide 5 mm×high 11.6 mm)
Measurement tankCompleted injection forming transparent professional measurement tank (size:length 16.9 mm×wide 9.8 mm×high 8.3 mm)
Result displayDisplay according to the model: density, specific gravity, apparent density, volume density, wet density, total porosity, effective porosity, oil content, water absorption, wear loss, wear index,expansibility,volume and so on.
Function settingWater temperature setting,density setting of medium of comparative solution, density setting of medium of water proofing treatment, bound setting, aerostatic buoyancy setting, loss value setting of fixed weight of reference glue, loss value setting of weight of reference glue,density setting of reference glue.
Mixed material percentageFunction introductionAutomatically read the percentage of the main material in the two kinds of mixed materials
SettingFreely set the density value of main material and subordinate material
DisplayDensity value, percentage of main material
Liquid modeMeasurement typea: Mobility liquid, vicidity liquid, volatile liquid, corrosivity liquid, high temperature liquid, suspension liquid, emulsion and so on.
Measurement principleArchimedes principle displacement method
Measurement mode3 groups
Measurement timeAbout 5 seconds
Memory modeMemory stored in one step
Result displayDensity and Baumé
Specific gravity measurement frameStainless steel specific gravity measurement frame
Function settingTemperature setting, density setting, measurement weights setting of standard sensor ball and weights setting in the water.
Measurement testingDistilled water testing
CalibrationAuto correction with one button, auto detection
Output interfaceRS-232 interface, output and print testing data conveniently
Standard accessoriesTank, testing board, tweezers,thermometer, 100g weight, windproof and dustproof dust cover, 1 set of measuring floating body parts, power transformer, standard liquid measurement assembly.
Optional accessoriesPrinter, anti-corrosive liquid measurement assembly
Power supply220/110 V, 50/60 Hz
External size (W×D×H)195×230×197 mm
Shipping size (W×D×H)440×180×345 mm
N.W. / G.W. (kg)1.6 / 4.51.8 / 4.5

Full description

High-precision multifunctional electronic density meter for solids and liquids, 120 or 300 g capacity. LCD display, density resolution 0.0001 g/cm³ (120 g) or 0.001 g/cm³ (300 g).
