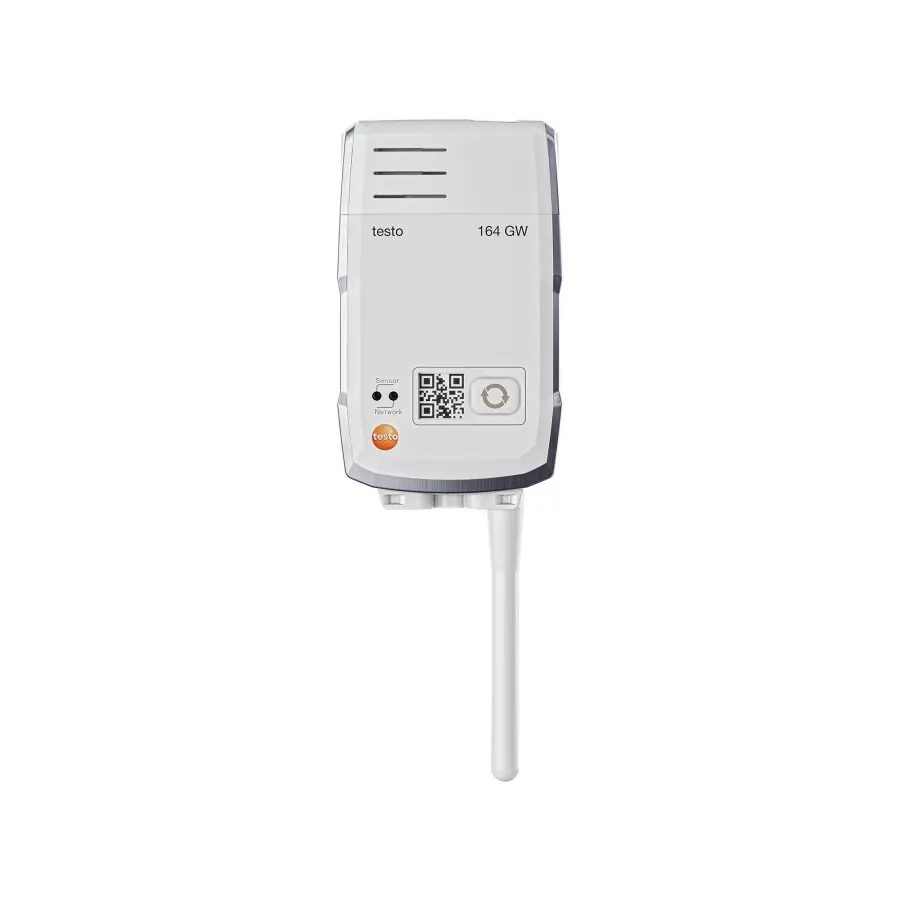

testo 164 GW - Gateway pour les mini-enregistreurs de données en ligne avec Ethernet

Testo · testo 164 GW

testo 164 GW - Gateway for mini online data loggers with Ethernet

The testo 164 Gateway is the component required to transfer the measurement values from the testo 164 mini online data loggers to the cloud. The testo 164 Gateways are part of the testo 160 online data logger system consisting of the hardware components (testo 160, testo 162, testo 164) as well as testo Smart Connect and testo Smart App. Testo Smart Connect is the central data platform. Measured values can be viewed and analyzed there. The Testo Data Monitoring license is required to use the system.

Category: Measuring instruments · Data loggers

Specifications by model

General technical dataValue
Weight250 g (with batteries)
Dimensions69 x 119 x 29 mm
Operating temperature0 to +50 °C
Ingress protection ratingIP 42
Measuring rate1 min to 24 h
Communication rate1 min to 24 h
External connectionExternal humidity / temperature probes
Power supplyExternal power supply; 4 AA backup batteries
InterfacesSub 1 GHz; IEEE 802.15.4
Battery lifeSwitch-off after 10 minutes
Storage temperature-30 to +60 °C

Full description

The gateway receives the measurement data from the testo 164 mini wireless data loggers via the proprietary wireless connection. The measurement values are transmitted to the testo Cloud by Ethernet. If limit values are exceeded, the testo Smart App alerts you directly via push notification of limit value violations. Alternatively, you can be notified by email or SMS. You can access all measurement data and analysis functions anytime and anywhere with your internet-enabled smartphone, tablet, or PC. Key benefits: • Limit value violation alarms by push notification, e-mail or (optionally) SMS • Secure and automated data transfer between testo 164 mini online data logger and testo Cloud • Connection to the testo Smart App: Simple commissioning, push alarms and dashboard • Automatic measurement value documentation in testo Smart Connect • Data transfer by Ethernet Automated temperature and humidity monitoring, alarm notification in the event of limit value violations thanks to testo 164 mini online data logger with Cloud connection Automated temperature and humidity monitoring, alarm notification in the event of limit value violations thanks to testo 164 mini online data logger with Cloud connection testo Smart App The app for all applications. Multifunctional. Continuously up to date. Free of charge. Scope of delivery: • testo 164 Gateway Ethernet • Wall bracket • Mains unit • Short instructions • White packaging
