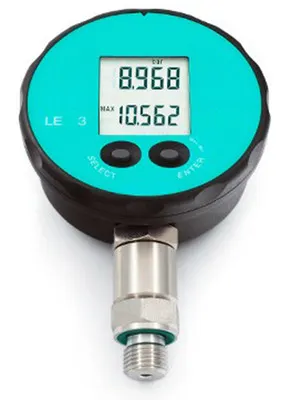

Series LE 3 — digital gauges with 4–20 mA output, class 0.1%

• Measuring range: -1...+1000 bar • Accuracy 0.1% • 4-20 mA output • Ø 76 mm • Minimum / maximum functions The LE 3 digital gauges are intended for test and calibration applications where the pressure must be transmitted as a 4-20 mA analog signal. Pressure is measured and displayed twice per second. The upper display shows the current pressure and the lower display shows the MAX or MIN pressure since the last RESET. The ZERO function sets a new zero at the applied pressure, or atmospheric pressure if that is chosen as the reference. It has a dual digital display, for the pressure (upper part) and for the output signal (lower part). The display is powered by the 4-20 mA current loop. The measured pressure can be displayed, saved and exported to a PC with the software and the matching converter (part no. 879 310).
