Testo · testo 340
Emission control in industry: the testo 340 flue gas analyzer gives you professional technology, easy handling and practical execution in one instrument. The high-performance testo 340 flue gas analyzer is fitted with an O2 sensor and can be equipped with up to 3 additional sensors.
Category: Measuring instruments · Industrial emission analysers
| Differential pressure - piezoresistive | Value |
|---|---|
| Measuring span | -200 to 200 hPa |
| Accuracy | ±1.5 % of mv (Remaining Range) · ±0.5 hPa (-49.9 to 49.9 hPa) |
| Resolution | 0.1 hPa |
| Absolute pressure | Value |
|---|---|
| Measuring span | +600 to +1150 hPa |
| Accuracy | ±10 hPa |
| Resolution | 1 hPa |
| Flue gas O₂ | Value |
|---|---|
| Measuring span | 0 to 25 %vol |
| Accuracy | ±0.2 Vol.% |
| Resolution | 0.01 Vol.% |
| Response time t₉₀ | < 20 s |
| Flue gas CO (H₂-compensated) | Value |
|---|---|
| Measuring span | 0 to 10000 ppm |
| Accuracy | ±10 % of mv (2001 to 10000 ppm) · ±10 ppm or ±10 % of mv (0 to 200 ppm) · ±20 ppm or ±5 % of mv (201 to 2000 ppm) |
| Resolution | 1 ppm |
| Response time t₉₀ | < 40 s |
| Flue gas COlow | Value |
|---|---|
| Measuring span | 0 to 500 ppm |
| Accuracy | ±5 % of mv (Remaining Range) data corresponds to 20°C ambient temperature. Additional temperature coefficient 0.25% of reading/K. · ±2 ppm (0 to 39.9 ppm) |
| Resolution | 0.1 ppm |
| Response time t₉₀ | < 40 s |
| Flue gas NO | Value |
|---|---|
| Measuring span | 0 to 4000 ppm |
| Accuracy | ±10 % of mv (2000 to 4000 ppm) · ±5 ppm (0 to 99 ppm) · ±5 % of mv (100 to 1999 ppm) |
| Resolution | 1 ppm |
| Response time t₉₀ | < 30 s |
| Flue gas NOlow | Value |
|---|---|
| Measuring span | 0 to 300 ppm |
| Accuracy | ±2 ppm (0 to 39.9 ppm) · ±5 % of mv (Remaining Range) |
| Resolution | 0.1 ppm |
| Response time t₉₀ | < 30 s |
| Flue gas NO₂ | Value |
|---|---|
| Measuring span | 0 to 500 ppm |
| Accuracy | ±10 ppm (0 to 199 ppm) · ±5 % of mv (Remaining Range) |
| Resolution | 0.1 ppm |
| Response time t₉₀ | < 40 s |
| Note | To avoid absorption, a maximum measurement duration of 2 hours should not be exceeded. |
| Flue gas SO₂ | Value |
|---|---|
| Measuring span | 0 to 5000 ppm |
| Accuracy | ±10 ppm (0 to 99 ppm) · ±10 % of mv (Remaining Range) |
| Resolution | 1 ppm |
| Response time t₉₀ | < 40 s |
| Note | To avoid absorption, a maximum measurement duration of 2 hours should not be exceeded. |
| Differential pressure - flue gas draught measurement | Value |
|---|---|
| Measuring span | -40 to +40 hPa |
| Accuracy | ±1.5 % of mv (Remaining Range) · ±0.03 hPa (-2.99 to +2.99 hPa) |
| Resolution | 0.01 hPa |
| Temperature | Value |
|---|---|
| Measuring span | -40 to +1200 °C |
| Accuracy | ±0.5 °C (0 to +99 °C) · ±0.5 % of mv (Remaining Range) |
| Resolution | 0.1 °C |
| Efficiency, Eta (calculated) | Value |
|---|---|
| Measuring span | 0 to 120 % |
| Resolution | 0.1 % |
| Flue gas loss (calculated) | Value |
|---|---|
| Measuring span | 0 to 99.9 % |
| Resolution | 0.1 % |
| Flue gas dew point (calculated) | Value |
|---|---|
| Measuring span | 0 to 99.9 °Ctd |
| Resolution | 0.1 °Ctd |
| CO₂ determination (calculated from O₂) | Value |
|---|---|
| Measuring span | 0 to CO₂ max |
| Accuracy | ±0.2 Vol.% |
| Resolution | 0.1 Vol.% |
| Response time t₉₀ | < 40 s |
| General technical data | Value |
|---|---|
| Weight | 960 g |
| Dimensions | 283 x 103 x 65 mm |
| Operating temperature | -5 to +50 °C |
| Product / housing material | TPE PC |
| Ingress protection rating | IP 40 |
| Connectable probes | 1 x flue gas probe; 1 x temperature probe; 1 x differential pressure |
| Product colour | Black |
| Battery life | > 6h (Pumpe an, Displaybeleuchtung aus, bei 20°C) |
| Display functions | Graphic display |
| Display size | 160 x 240 pixels |
| Display type | Graphic display |
| Power supply | Battery block 3.7 V / 2.4 Ah, Mains unit 6.3 V / 2 A |
| Hose length | max. 7.8 m (corresponds to two probe hose extensions) |
| Max. flue gas negative pressure | -200 mbar |
| Max. flue gas positive pressure | 50 mbar |
| Pump flow rate | 0.6 l/min (regulated) |
| User-definable fuels | 10 user-defined fuels incl. test gas as fuel |
| Maximum memory | 100 folders |
| Memory per folder | Max. 10 sites |
| Memory per measuring location | Max. 200 logs |
| Miscellaneous | The max. number of reports is determined by the number of folders or measuring sites. |
| Interfaces | Bluetooth®; USB; IR/IRDA interface; gas outlet; mains connection; probe input(s); differential pressure |
| Storage temperature | -20 to +50 °C |
Testo · Kit de sondes industrielles chauffées
Ideal for official emission measurement (compliance testing): the heated industrial probe kit comprises a heated probe shaft up to 600°C flue gas temperature, a heated gas sampling hose (length 4 m) and a thermocouple type K – this means you are ideally equipped.
Testo · Kit pour sondes industrielles 1200 °C
Ideal for the extractive sampling of flue gas at high flue gas temperatures. The industrial probe kit 1200°C comprises a handle, a probe shaft up to 1200°C flue gas temperature, a 4 m long gas sampling hose, including inline filter (all three unheated) and a thermocouple type K.
Testo · Kit pour sondes industrielles 1800 °C
Ideal for the extractive sampling of flue gas at high flue gas temperatures, e.g. in glass and steel production. The industrial probe kit 1800°C comprises a handle, a probe shaft up to 1800°C flue gas temperature and a 4 m long gas sampling hose, including inline filter (all three unheated).
Testo · Sonde d'air comburant 60 mm
The probe is used for the targeted measurement of combustion air temperature in the context of flue gas or fine particle measurements.
Testo · Sonde de combustion avec préfiltre pour moteurs industriels
The flue gas probe from Testo makes it possible to carry out efficient flue gas measurements on industrial engines. In the case of diesel engines, the permanently welded-on preliminary filter provides protection from diesel particulates. It can be used at flue gas temperatures of up to 1,000 °C.
Testo · Sonde de combustion pour moteurs industriels
The flue gas probe from Testo can be used to carry out efficient and reliable flue gas measurements on stationary industrial engines. It can be used at flue gas temperatures of up to 1,000 °C.
Testo · Sonde de combustion modulaire avec préfiltre, Ø 14 mm, 335 mm, Tmax 1000 °C
The modular flue gas probe with preliminary filter Ø 14 mm, 335 mm long probe shaft, thermocouple up to 1000 °C and quick-change click system (for quick probe shaft replacement).
Testo · Sonde de combustion modulaire avec préfiltre, Ø 14 mm, 700 mm, Tmax 1000 °C
The modular flue gas probe with preliminary filter Ø 14 mm, 700 mm long probe shaft, thermocouple up to 1000 °C and quick-change click system (for quick probe shaft replacement).
Testo · Sonde de prélèvement, modulable, incluant une tuyauterie de ...
The modular flue gas probe with 335 mm long probe shaft including integrated thermocouple up to 1000 °C and quick-change click system (for quick replacement of the probe shaft).
Testo · Sonde de prélèvement, modulable, incluant une tuyauterie de ...
The modular flue gas probe with 335 mm long probe shaft including integrated thermocouple up to 500 °C and quick-change click system (for quick replacement of the probe shaft).
Testo · Sonde de fumée 700 mm, T° max 1000°C, tuyauterie 2.20 m
The modular flue gas probe with 700 mm long probe shaft including integrated thermocouple up to 1000 °C and quick-change click system (for quick replacement of the probe shaft).
Testo · Sonde de fumée 700 mm, T° max 500°C, tuyauterie 2.20 m
The modular flue gas probe with 700 mm long probe shaft including integrated thermocouple up to 500 °C and quick-change click system (for quick replacement of the probe shaft).
Testo · Sonde d'air comburant 190 mm
The probe is used for the specific measurement of combustion air temperature within the context of flue gas or particulate matter measurements.
Testo · Tube de Pitot
Use the robust, 350 mm long Pitot tube with a diameter of 7 mm for measuring flow velocity (in combination with a compatible measuring instrument / probe).
Testo · Tube de Pitot en acier inoxydable, longueur : 1000 mm, Ø 7 mm
Use the robust, 1000 mm long Pitot tube with a diameter of 7 mm for measuring flow velocity (in combination with a compatible measuring instrument / probe).
Testo · Tube de Pitot en acier inoxydable, longueur : 500 mm, Ø 7 mm
Use the robust, 500 mm long Pitot tube with a diameter of 7 mm for measuring flow velocity (in combination with a compatible measuring instrument / probe).
Testo · Tube de Pitot en acier inoxydable, longueur : 750 mm
Robust Pitot tube for measuring flow velocity: the Pitot tube provides the optimum conditions, especially for higher flow velocities and for heavily contaminated flow. The 750 mm long Pitot tube has integrated temperature measurement and a connection hose with a maximum load capacity of up to 700 hPa (mbar).
Testo · Bloc secteur 100-240 V AC / 6,3 V DC (prise internationale)
Use the mains unit for mains operation of your measuring instrument or for battery charging in the instrument. It is suitable for international use.
Testo · Capteur d’O2 de rechange
O2 replacement sensor for flue gas measurement. Particularly practical: you can replace the sensor yourself – the precalibrated sensor is simply plugged into the appropriate flue gas analyzer.

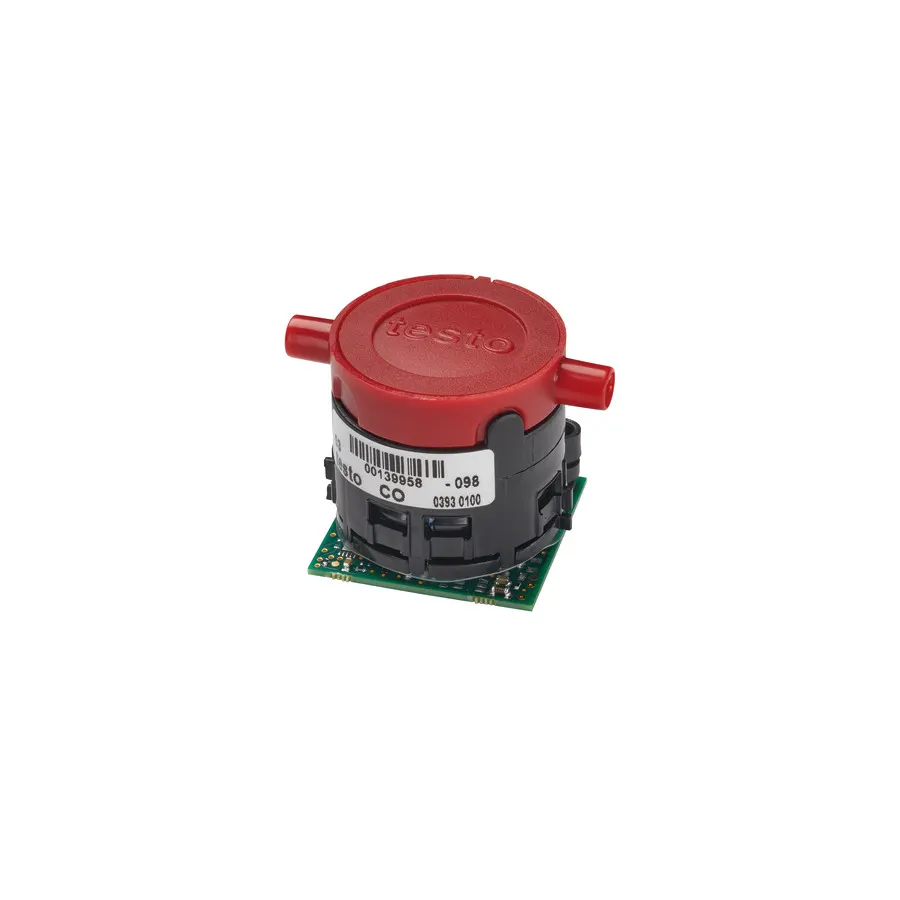

Testo · Capteur de CO de rechange (avec compensation H2)
CO-H2 replacement sensor for precise gas measurement, 0–10,000 ppm range. Convenient and user-friendly: you can easily replace the sensor yourself – the precalibrated sensor plugs directly into the compatible Testo gas analyzer.
Testo · Canne de prélèvement de rechange en céramique
Equip your flue gas analyzer with an additional measurement parameter. This retrofit sensor enables H2-compensated CO measurement in the flue gas and ensures activation of the measurement parameter in the flue gas analyzer. Particularly practical: you can insert the precalibrated sensor into the compatible measuring instrument effortlessly yourself.
Testo · Canne de prélèvement de rechange en céramique
COlow (H2-compensated) replacement sensor for flue gas measurement. Particularly practical: you can replace the sensor yourself – the precalibrated sensor is simply plugged into the appropriate flue gas analyzer.
Testo · Capteur de COlow de rééquipement (avec compensation H2)
Equip your flue gas analyzer with an additional measurement parameter. This retrofit sensor enables H2-compensated COlow measurement in the flue gas and ensures activation of the measurement parameter in the flue gas analyzer. Particularly practical: you can insert the precalibrated sensor into the compatible measuring instrument effortlessly yourself.
Testo · Canne de prélèvement de rechange en céramique
NO replacement sensor for flue gas measurement. Particularly practical: you can replace the sensor yourself – the precalibrated sensor is simply plugged into the appropriate flue gas analyzer.
Testo · Capteur de NO de rééquipement
Equip your flue gas analyzer with an additional measurement parameter. This retrofit sensor enables NO measurement in the flue gas and ensures activation of the measurement parameter in the flue gas analyzer. Particularly practical: you can insert the precalibrated sensor into the compatible measuring instrument effortlessly yourself.
Testo · Canne de prélèvement de rechange en céramique
NO2 replacement sensor for flue gas measurement. Particularly practical: you can replace the sensor yourself – the precalibrated sensor is simply plugged into the appropriate flue gas analyzer.
Testo · Canne de prélèvement de rechange en céramique
Equip your flue gas analyzer with an additional measurement parameter. This retrofit sensor enables NO2 measurement in the flue gas and ensures activation of the measurement parameter in the flue gas analyzer. Particularly practical: you can insert the precalibrated sensor into the compatible measuring instrument effortlessly yourself.
Testo · Canne de prélèvement de rechange en céramique
NOlow replacement sensor for flue gas measurement. Particularly practical: you can replace the sensor yourself – the precalibrated sensor is simply plugged into the appropriate flue gas analyzer.
Testo · Canne de prélèvement de rechange en céramique
Equip your flue gas analyzer with an additional measurement parameter. This retrofit sensor enables NOlow measurement in the flue gas and ensures activation of the measurement parameter in the flue gas analyzer. Particularly practical: you can insert the precalibrated sensor into the compatible measuring instrument effortlessly yourself.

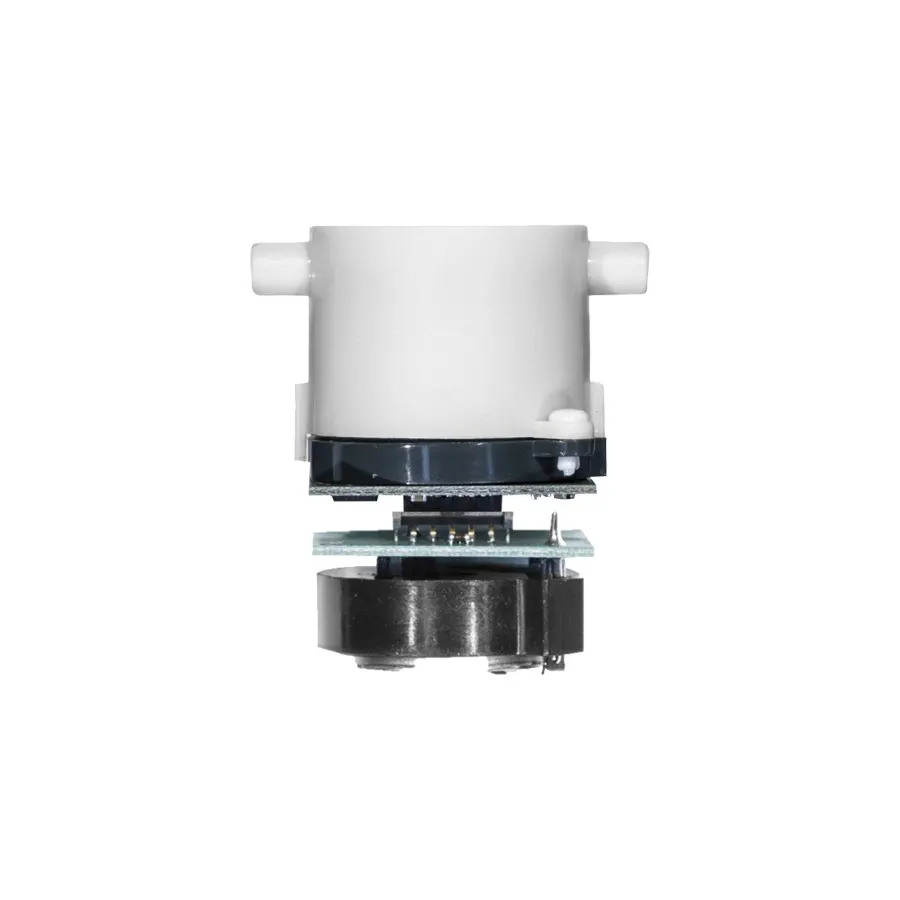

Testo · testo 340
