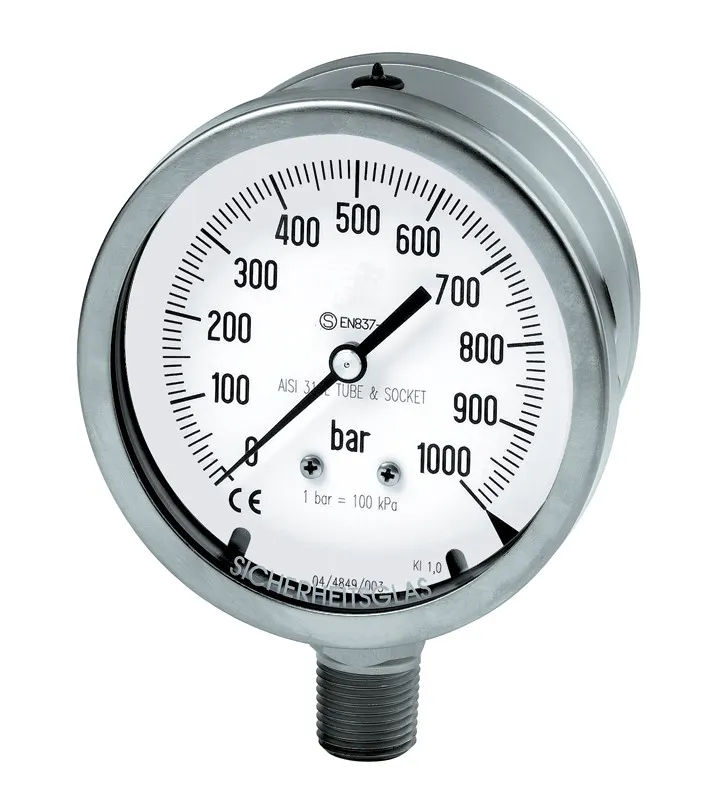

Series 8620 — all stainless safety pressure gauges

• All stainless steel, safety pattern "S3" • Dry or liquid filled • Ø 100 mm (Ø 63 et Ø 150 mm en optio) • 316L stainless steel case • Measuring range from -1 to 1,600 bar • Accuracy class 1 (1.6 for Ø 63 mm) • ½" stainless steel connection • Vertical mounting (back mounting optional) Designed particularly for the chemical and petrochemical industries. The CITEC 8620 series gauges have a safety baffle and a blow-out back to EN 837-1 safety pattern S3. They have a solid baffle at the front of the gauge and a blow-out back which, in the event of accidental failure, protects the operator standing nearby. An ATEX option is available.
